Used Catalytic Oxidizer Inventory



Falmouth Products used catalytic oxidizers and remediation equipment is extensively tested prior to sale

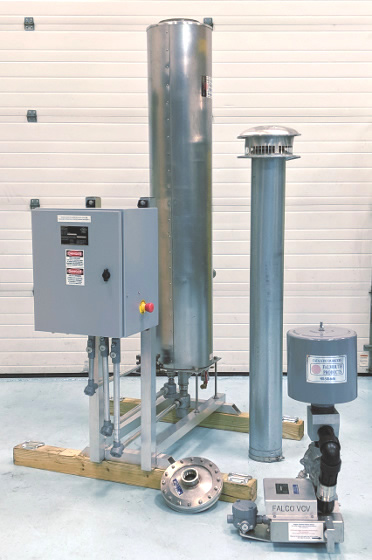

FALCO 100 catalytic oxidizer serial 18-100-01

FALCO 100 catalytic oxidizer (serial # 18-100-01) with 2 horsepower blower package (serial #18-100-2-01) was rented at a SVE site (2388 hours meter reading).
This equipment was tested at Falmouth Products on 06-07-18, is in excellent condition (catalyst destruction efficiency is > 99%), and is supplied with the items detailed below.

Used FALCO 100 Catalytic Oxidizer (18-100-01) includes the following components:

  • Integrated heat exchanger constructed of type 304 stainless steel (67% efficient @ 100 scfm)
  • Temperature control system in a NEMA 4X control box
  • Thermocouples (3) measuring entrance, exit, and internal catalyst bed temperatures
  • Temperature controllers (3) supplied with 4-20 mA retransmit
  • Heater high limit thermocouple, controller, and contactor
  • 7300 watt electric heater (240 volts single-phase required)
  • Motor starter for SVE blower control/integration
  • Normally open and normally closed terminals provided for integration with additional on-site equipment
  • Islatrol electrical noise filter
  • Emergency stop switch
  • Digital hour meter to record oxidizer run time
  • Precious metal (platinum/palladium) catalyst
  • Automatic Vapor Control Valve (VCV) with filter
  • Flame arrestor
  • Five feet of gas vent pipe with stack adapter and rain hat
  • Sample ports (influent and effluent)
  • Installation and Operations Manual
  • Factory Mutual approval (US and Canada) for use in hazardous locations
  • Falmouth Products standard 1 year warranty

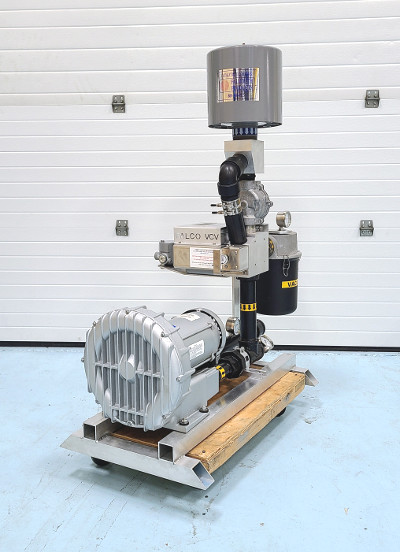

Used 2 Horsepower Blower Package (18-100-2-01) includes the following components:

  • Rotron EN505AX58ML 2 hp, single phase, explosion proof, regenerative blower
  • Blower filter 2” inlet/outlet with filter element
  • Sample ports
  • Stainless steel vacuum (2) and pressure (1) gauges
  • Factory installed electrical conduit and piping between oxidizer, blower and VCV
  • Aluminum mounting frame
  • Installation and Operations Manual
  • Factory Mutual approval (US and Canada) for use in hazardous locations

Please contact us for more information

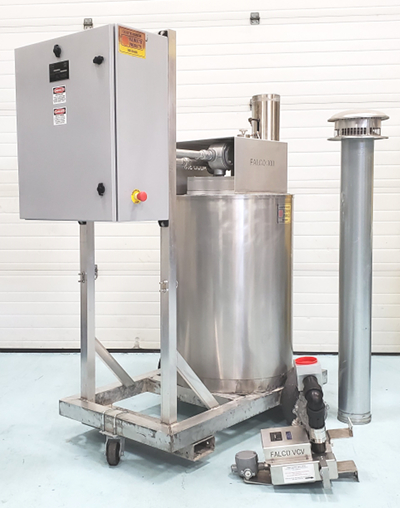

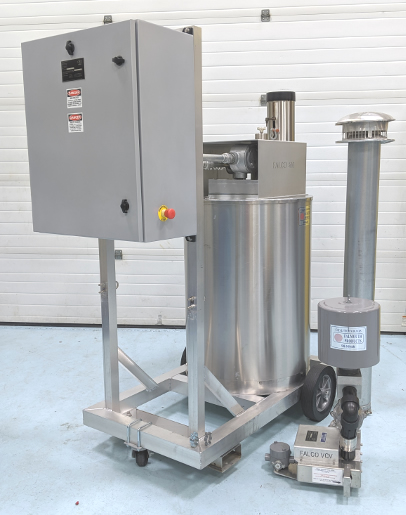

FALCO 300 catalytic oxidizer serial 18-300S-02

FALCO 300 catalytic oxidizer (serial # 18-300S-02) was rented at a SVE site (2,448 hours meter reading).

This equipment was tested at Falmouth Products, is in excellent condition (catalyst destruction efficiency is >99%), and is supplied with the items detailed below.


FALCO 300 Catalytic Oxidizer

Serial #18-300S-02 includes the following components:

  • Integrated heat exchanger constructed of stainless steel (73% efficient @ 300 scfm)
  • Aluminum frame with attached forklift pockets
  • Precious metal catalyst (packed bed) for VOC destruction (2.5 cubic feet)
  • Temperature control system in a NEMA 4X enclosure (single phase 120 volts required)
  • Thermostatically controlled enclosure cooling fan
  • Thermocouples (3) measuring entrance, exit, and internal catalyst bed temperatures
  • Temperature controllers (3) supplied with 4-20 mA retransmit
  • SCR power controller, semi conductor fusing, and heat sink for heater control
  • Heater high limit thermocouple, controller, and contactor
  • Heaters wired and fused for 3-phase 208-240 volts
  • Motor starter for SVE blower control/integration
  • Normally open and normally closed terminals provided for integration with additional on-site equipment
  • Emergency stop switch
  • Digital hours meter to record oxidizer run time
  • FALCO Automatic Vapor Control Valve (VCV) with filter
  • Flame arrestor
  • Five feet of (6") gas vent pipe with rain hat
  • Sample ports (influent and effluent)
  • Installation and operations manual
  • Factory Mutual approval (US and Canada) for use in hazardous locations
  • Falmouth Products standard 1 year warranty.

Please contact us for more information



FALCO 300 catalytic oxidizer serial 17-300S-10

FALCO 300 catalytic oxidizer (serial # 17-300S-10) was rented at a SVE site (4,281 hours meter reading).

This equipment was tested at Falmouth Products, is in excellent condition (catalyst destruction efficiency is >99%), and is supplied with the items detailed below.


FALCO 300 Catalytic Oxidizer

Serial #17-300S-10 includes the following components:

  • Integrated heat exchanger constructed of stainless steel (73% efficient @ 300 scfm)
  • Aluminum frame with attached forklift pockets
  • Precious metal catalyst (packed bed) for VOC destruction (2.5 cubic feet)
  • Temperature control system in a NEMA 4X enclosure (single phase 120 volts required)
  • Thermostatically controlled enclosure cooling fan
  • Thermocouples (3) measuring entrance, exit, and internal catalyst bed temperatures
  • Temperature controllers (3) supplied with 4-20 mA retransmit
  • SCR power controller, semi conductor fusing, and heat sink for heater control
  • Heater high limit thermocouple, controller, and contactor
  • Heaters wired and fused for 3-phase 208-240 volts
  • Motor starter for SVE blower control/integration
  • Normally open and normally closed terminals provided for integration with additional on-site equipment
  • Emergency stop switch
  • Digital hours meter to record oxidizer run time
  • FALCO Automatic Vapor Control Valve (VCV) with filter
  • Flame arrestor
  • Five feet of (6") gas vent pipe with rain hat
  • Sample ports (influent and effluent)
  • Installation and operations manual
  • Factory Mutual approval (US and Canada) for use in hazardous locations
  • Falmouth Products standard 1 year warranty.

Please contact us for more information

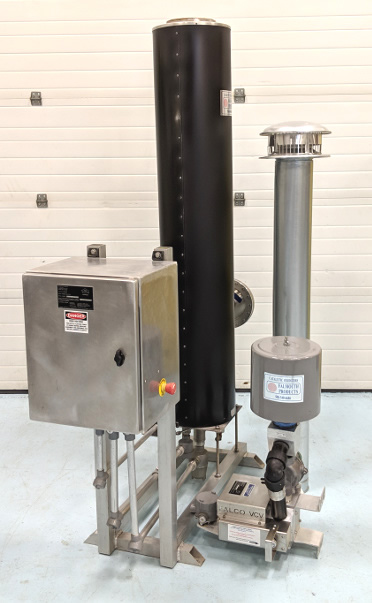

FALCO 100 catalytic oxidizer serial #11-100-06

FALCO 100 catalytic oxidizer (serial # 11-100-06) was used at a SVE site (13013 hours meter reading).
This equipment was tested at Falmouth Products on 11-27-18, is in good condition (catalyst destruction efficiency is > 99%), and is supplied with the items detailed below.


Used FALCO 100 Catalytic Oxidizer Serial #11-100-06 includes the following components:

  • Integrated heat exchanger constructed of type 304 stainless steel (67% efficient @ 100 scfm)
  • Temperature control system in a NEMA 4X control box
  • Thermocouples (3) measuring entrance, exit, and internal catalyst bed temperatures
  • Temperature controllers (3) supplied with 4-20 mA retransmit
  • Heater high limit thermocouple, controller, contactor and MDR for heater switching
  • 7300 watt electric heater (240 volts single-phase required)
  • Motor starter for SVE blower control/integration
  • Normally open and normally closed terminals provided for integration with additional on-site equipment
  • Islatrol electrical noise filter
  • Emergency stop switch
  • Digital hour meter to record oxidizer run time
  • Precious metal (platinum/palladium) catalyst
  • FALCO Automatic Vapor Control Valve (VCV) with filter
  • Flame arrestor
  • Five feet of gas vent pipe with stack adapter and rain hat
  • Sample ports (influent and effluent)
  • Installation and Operations Manual
  • Factory Mutual approval (US and Canada) for use in hazardous locations
  • Falmouth Products standard 1 year warranty

Please contact us for more information
