FALCO LIQUID SEPARATOR

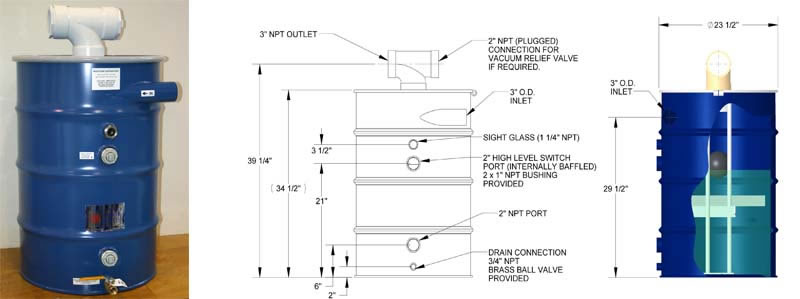

FALCO liquid separator image

The FALCO Liquid Separator removes liquids and mist from air streams in soil vapor extraction applications. The Separator is installed on the vacuum side of the blower to prevent liquid carryover to the blower and treatment system.

The drum has a removable lid. Inside a cage provides columnar support to the drum. A stainless ball float shuts off inlet flow when the drum is full.

CAPACITY:
High level switch port: 35 gallons
Ball float shutoff: 43 Gallons
INLET: 3” OD Tubing
OUTLET: 3” NPT
CONSTRUCTION: 16 gauge steel-powder coated blue
WEIGHT: 77 pounds
MAXIMUM RATED VACUUM: 23 inches of Hg (312 inches H20)
