FALCO 600 CATALYTIC OXIDIZER WITH OPTIONAL 20 H.P. BLOWER ASSEMBLY



FALCO 600 20 HP

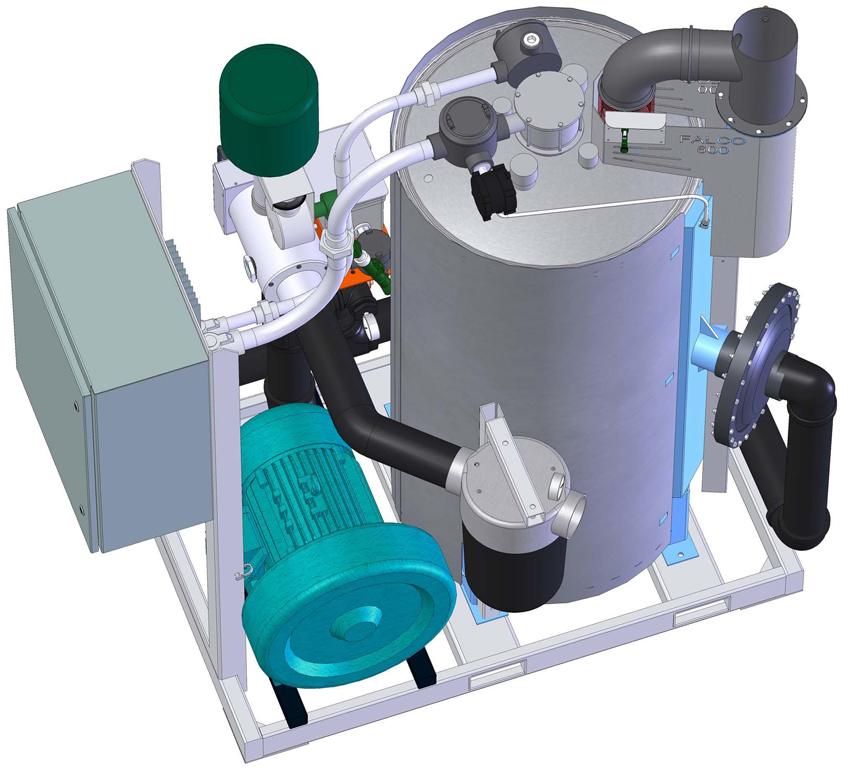

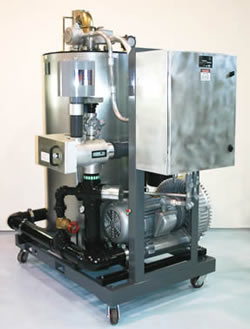

This high flow extraction and treatment system integrates the FALCO 600, Blower, VCV and inlet filter onto one steel frame. Assembly weighs only 2,270 lbs and is 56” wide, 78” long, and 87” tall.

It fits in a parking space or full size pickup truck and can be shipped by common carrier (flat bed not required).

At low vacuum, up to 430 lbs/day of petroleum hydrocarbons can be treated. Small size, high processing capacity and energy efficiency make this system ideal for large scale Soil Vapor Extraction applications. Assembly is Factory Mutual approved for use in hazardous locations.



Assembly provides the following performance:

Blower Inlet vacuum    FALCO Inlet pressure        Flow into oxidizer

80” H20                                  25” H20                      495 SCFM

60” H20                                  30” H20                      580 SCFM

40” H20                                  38” H20                      635 SCFM

35” H20                                  40” H20                      660 SCFM



Packaged system includes the following:

  • FALCO 600 Catalytic Oxidizer
  • Airtech regenerative blower model # 3BA1900 with 20 hp, 3 phase XP motor
  • Vapor Control Valve (VCV) with filter
  • Solberg 4” inline blower filter
  • Stainless steel vacuum and pressure gauges
  • Vacuum relief valve
  • Recirculation valve for flow adjustment
  • Mounting frame, factory piping and wiring between FALCO, blower and VCVFM approval link

Click here to download a printable PDF Cut Sheet for this product.
