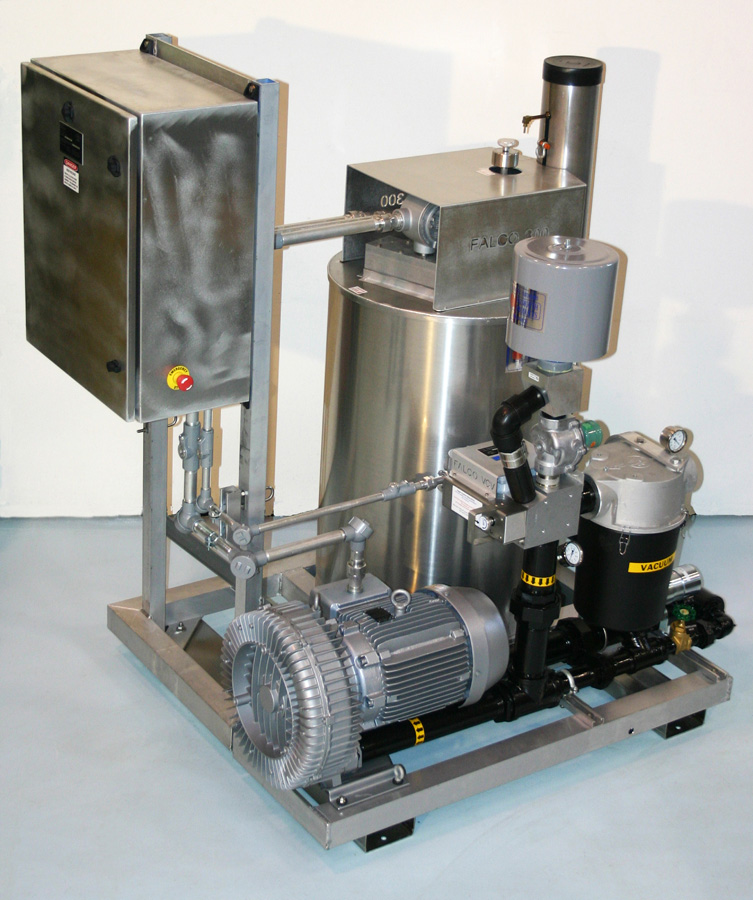

FALCO 300 CATALYTIC OXIDIZER WITH OPTIONAL 15 H. P. BLOWER PACKAGE



FALCO 300 15 HP

The blower package combines with the FALCO 300 to form an integrated vapor extraction and treatment system. Factory assembly minimizes work on site. This unit can be installed and running in less than three hours with one conduit to your breaker box and one connection to the vapor source.

Components are mounted on frames joined by forklift beams.  One frame supports the blower, Vapor Control Valve, and accessories.  The second frame supports the FALCO 300. This low profile system weighs 1,460 lb. and is 4’ 3” wide, 5’ 7” long, and 6’ 2” tall. It fits in a parking space or a full size pickup truck.

When integrated with the FALCO 300, this 15 hp blower provides the following performance:

30”  H20 vacuum  =   365 scfm oxidizer flow
60”  H20 vacuum  =   295 scfm oxidizer flow
100” H20 vacuum =   204 scfm oxidizer flow

Careful assembly of components and extensive testing yields a standardized system made to last. System is Factory Mutual approved for use in hazardous locations.


Packaged system includes the following:

FALCO 300 Catalytic Oxidizer
Airtech 15 hp, three phase, explosion proof, regenerative blower model #3BA1830
Vapor Control Valve (VCV) with filter
Solberg 3" inline blower filter
Stainless steel vacuum and pressure gauges
Vacuum relief valve
Recirculation valve for flow adjustment
Stainless steel mounting rails with forklift pockets
Mounting frames, factory piping and wiring between FALCO, blower and VCV
FM approvals link

Click here to download a printable PDF Cut Sheet for this product.
