FALCO 300 CATALYTIC OXIDIZER SPECIFICATIONS



FALCO 300 image

The FALCO 300 electric catalytic oxidizer treats air streams contaminated with volatile organic compounds. The catalyst provides VOC destruction efficiencies up to 99.5%. Operation, including startup, is fully automatic. Control system accurately regulates input loading and temperatures. The controls adjust a FALCO Vapor Control Valve (VCV) to maintain safe maximum input concentrations. Automatic shutdown results if temperatures exceed limits.

A spiral plate heat exchanger provides efficient heat recovery and a bypass valve allows for adjustment of heat recovery. Low heat recovery enables operation at high vapor concentration. High heat recovery minimizes energy use during operation at low input vapor concentration. At 780 ppmv (Gasoline) and 300 scfm, sufficient heat is recovered to preheat the inflow without supplementary electric energy.

FALCO 300 Energy use calculator

The FALCO 300 has a massive catalyst volume for its rated capacity, providing longer life and poison resistance than monolith type catalysts. If necessary, the catalyst can be replaced on site in one hour.

The FALCO 300 is easily integrated with a wide variety of remediation equipment.

FALCO 300 with 5.5 H.P. Blower Package

FALCO 300 with 10 H.P. Blower Package

FALCO 300 with 15 H.P. Blower Package

FALCO 300 Technical Information

CAPACITY 100-350 scfm
MAXIMUM INPUT LOADING 250 lb/day petroleum hydrocarbons @ 350 scfm
VAPOR CONTROL FALCO Vapor Control Valve (VCV)
DESTRUCTION EFFICIENCY Up to 99.5%
CATALYST TEMPERATURE RANGE 330-620ºC (626-1148ºF)

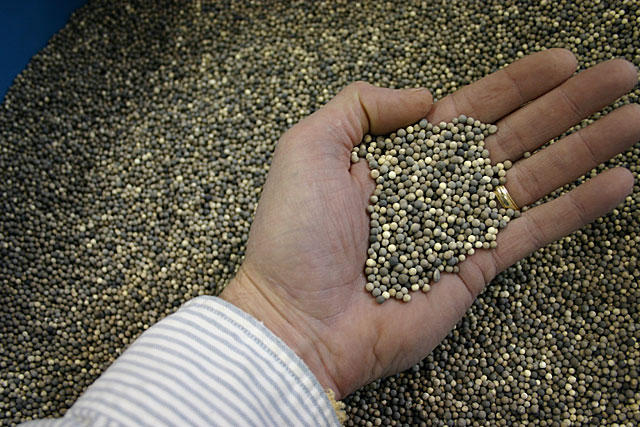

CATALYST Packed bed 2.5 cubic feet. Platinum and Palladium on 1/8” ceramic beads standard. Optional catalyst for chlorinated solvents
HEAT EXCHANGER 304 Stainless steel spiral plate. 73% thermal efficiency @ 300 scfm (adjustable)
HEATER (Electric) 56 amp @ 208 volts (20.3 kW) or, 64.6 amps @ 240V (27 kW) Solid State Control

CONSTRUCTION Stainless steel and aluminum
WEIGHT 830 lb. with flame arrestor
DIMENSIONS 73" high (excluding 5' stack) X 70" long X 29" wide Fits in the back of a pick up truck.
POWER REQUIREMENTS Heater 3Ø:
56 amp @ 208 VAC (20.3 kW) or 65 amp @ 240 VAC (27 kW)
Optional:
33 amp @ 480 VAC (27 kW) or 38 amp @ 415 VAC (27 kW)
Heater 1Ø:
56.5 @ 240 VAC (13.5 kW)
Controls:  120 VAC, 60 Hz
Optional:  120 VAC, 50 Hz
APPROVALS Factory Mutual Approved for use in Class 1, Div 2, Group D, T2C Hazardous locations extending up to 41” above the ground. South Coast Air Quality Management District (SCAQMD) Certified Equipment Permit.
